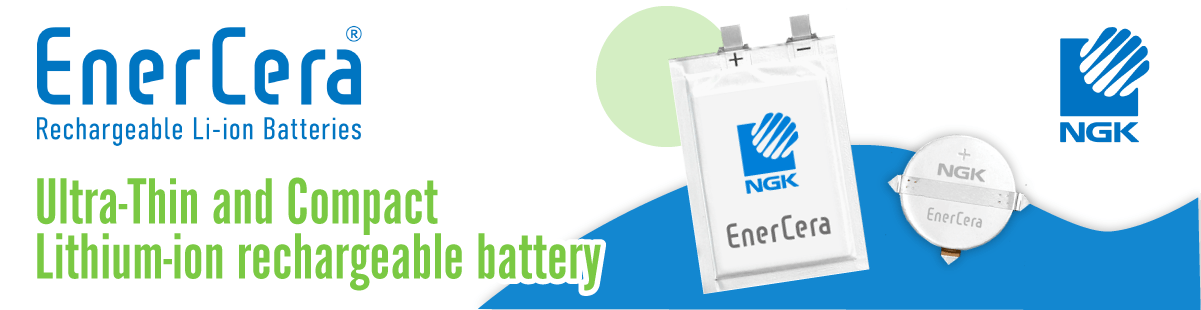

About EnerCera
The EnerCera battery is an ultra-thin and ultra small Li-ion rechargeable battery. A semi-solid-state battery developed using NGK’s original crystal oriented ceramic plate as electrodes, EnerCera achieves features that were difficult to incorporate together in existing Li-ion rechargeable batteries, such as high capacity, high output, high heat resistance, and long lifetime.
Main features：
- An ultra-thin, compact power solution that delivers high heat resistance, exceptional safety and reliability, high output, and long-lasting performance.
- Due to its low internal resistance, EnerCera batteries can store incredibly small amounts of electricity and output large amounts of power when required.
- The ideal power source for environmental power generation (energy harvesting) and wireless power transfer (WPT).
- For maintenance-free IoT devices that rely only on natural energy sources and which can be used repeatedly.
Key technologies：
- Crystal oriented ceramic electrode
- Semi-solid state battery
Lineup：
EnerCera Pouch/EnerCera Coin
Target Applications：
Wearable devices, Card-type devices, Backup power applications
Specifications & Features
■Size
- An ultra-thin product with thickness of 0.45 mm and good bending resistance(EnerCera Pouch)
- Coin-shaped product with thickness of 1.3 to 2 mm suitable for mounting on circuit boards.（EneCera Coin)
■Specification
- Nominal Voltage 2.3 V〜3.8 V（*Varies by part number）
- Nominal Capacity:4 mAh〜27 mAh （*Varies by part number）
- Peak Discharge Current 20mA～560mA （*Varies by part number）
- Charging Method：Constant Current (CC) – Constant Voltage (CV) , or Constant Voltage (CV)
■Operation Temperature
- -20 ～ 60 ℃（Discharge）, Or -40 ～ 105 ℃（ET Series）
*Varies by package – see datasheet for details.
Product Family Comparison Chart
| EC382704P-T | EC382704P-Hr | ET382704P-H | ET2016C-R | ET1210C-H | |
|---|---|---|---|---|---|
| Package | Pouch | Pouch | Pouch | Coin | Coin |
| Dimensions/Diameter (Without terminals) |
38mm×27mm | φ20mm | φ12.5mm | ||
| Thickness (With terminals) |
0.45mm | 2.05mm | 1.3mm | ||
| Nominal Capacity | 27mAh (4.3V) | 20mAh | 20mAh | 25mAh | 4mAh |
| Nominal Voltage | 3.8V | 2.3V | |||
| Bendability | Conforming to ISO/IEC10373-1 standard No deterioration after bending and torsion tests |
– | |||
| Operation Temperature | Discharge: -20℃∼45℃ (Charge: 0℃∼45℃) |
Discharge: -20℃∼60℃ (Charge: 0℃∼60℃) |
-40℃∼70℃ | -20℃*5∼105℃ | |
| Features | High Power | High heat resistance*3 |
Fast charging*4 | Reflow soldering unapplicable |
Reflow soldering applicable*6 |
| User Guide | Download | Download | Download | Download | Download |
| Data Sheet | Download | Download | Download | Download | Download |
| SDS | Download | Download | Download | Download | Download |
| Product purchase | Buy | Buy | Buy | Buy | Buy |
Target Applications
■Wearable devices：
- Smart shoes
■Life support：
- Smart home
- Security Card
- Health care
■Logistics：
- Label-Type device
- Flexible Sensor Tags
■Industry：
- Small tracker
- Backup Power Supply
Product Inquiries & Purchasing
Click here for inquiries
Products are available for purchase starting from one unit.
purchase a product
